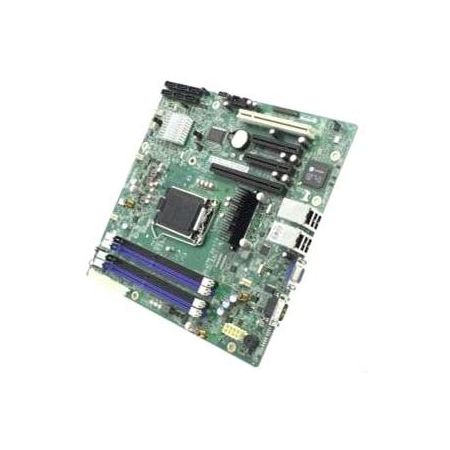

Intel S1200BTSR Server Motherboard - Intel C202 Chipset - Socket H2 LGA-1155 Item # 298477
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
298477
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
The Intel Server Board S1200BT provides server-class performance without sacrificing cost-effectiveness or reliability to support the success of a workgroup, department, or small- to medium-sized business.
Product Details
| Item # | 298477 |
| Manufacturer # | 10998435 |
| Number of SATA Interfaces | 6 |
| Onboard LEDs Header | Yes |
| Total Number of Onboard USB Ports | 3 |
| Memory Speed Supported | 1.60 GHz; 1.33 GHz; 1.07 GHz |
| RAID Levels | 0; 1; 5; 1+0 |
| Processor Supported | Xeon |
| Number of Network (RJ-45) Ports | 2 |
| Compatible Processors | Xeon E3-1200 series |
| Total Number of USB Ports | 4 |
| BIOS Type | Intel |
| Serial Port | Yes |
| Graphics Controller Manufacturer | Intel |
| Registered or Buffered | Unbuffered |
| width | 9.6 in |
| RAID Features | Intel Rapid Storage Technology |
| Number of Memory Slots | 4 |
| Audio Line In | No |
| Storage Interfaces | SATA-300 - connector(s): 6 x 7pin Serial ATA - 6 device(s) - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| depth | 9.6 in |
| Product Name | S1200BTSR Server Motherboard |
| Number of PCI Express x16 Slots | 1 |
| Total Processor Supported | 1 |
| Total Number of PCI Express Slots | 3 |
| Graphics Memory Accessibility | Dedicated |
| manufacturer | Intel Corporation |
| 64-bit Processing | Yes |
| Bus Clock | 1333 MHz, 1066 MHz |
| VGA | Yes |
| Audio Line Out | No |
| Max Processors Qty | 1 |
| RAID Supported | Yes |
| brand name | Intel |
| Max Size | 32 GB |
| Dedicated Video Memory | 64 MB DDR2 SDRAM |
| Maximum Memory | 32 GB |
| Supported RAM Integrity Check | ECC |
| controller type | Serial ATA/300 |
| Number of Onboard USB 2.0 Ports | 3 |
| Gigabit Ethernet | Yes |
| Network Controller | Intel 82574L / 82578DM |
| Network (RJ-45) | Yes |
| Microphone Port | No |
| Number of USB 2.0 Ports | 4 |
| Memory Standard | DDR3-1600/PC3-12800; DDR3-1333/PC3-10600; DDR3-1066/PC3-8500 |
| Memory Form Factor | DIMM; UDIMM |
| Graphics Memory Technology | DDR2 SDRAM |
| Number of Total Expansion Slots | 4 |
| Processor Socket | LGA1155 Socket |
| Chipset Model | C202 |
| Chipset Manufacturer | Intel |
| form factor | Micro ATX |
| Memory Technology | DDR3 SDRAM |
| Graphics Controller Memory | 64 MB |
| Onboard Video | CPU Dependent Video |
| PCI Express Standard | PCI Express 2.0 |
| warranty length | 3-year limited |
| model name | S1200BTSR |
| Number of PCI Slots | 1 |
| Number of PCI Express x8 Slots | 2 |
| Show More ▾ |
